ASI relays-based A/B Switch

Table of Content

Located at rack 20, this device allows for manually switching of ASI signals from Microwave or Fiber to our six TSL Decoders located at rack 19.


Click to selectSpecifications

  • Number of inputs   : 12 (A1-A6, B1-B6)

  • Number of outputs  : 6

  • Connector type     : BNC

  • Impedance (Nominal): 50 Ohm

  • Operating Frequency: DC-18GHz

  • Fail Over          : No


Click to selectTechnical Info
Cuircuit Diagram

Relays employed: DowKey Microwave model 403-2308.
Serial Numbers of relays employed:
    1665
    1675
    1886
    1870
    2368
    2376

Catalog of Relays by DowKey Microwave

Click to selectPictures
Front View

Rear View

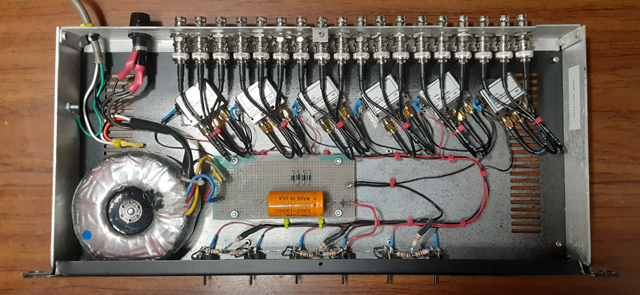

Interior

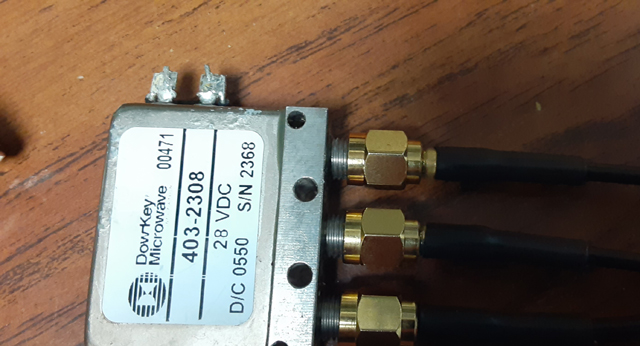

Relay employed
